PPGI Standing Seam Metal Roof
Standing seam is a double folded seam. The use of profiling and seaming machines for the closure of longitudinal seam joints significantly reduces installation time. When dealing with more complex designs this system presents a more technologically advanced appearance. The Standing seam technique is particularly suitable for very large roof and facade surfaces and for structures located in regions of harsh climate, which are often subject to strong winds, heavy rain and snowfall.
Features and Benefits
- Fast and easy installation making it a cost effective solution.
- Maximum wind resistance.
- Suitable for low to high hygrometry.
- Traditional system widely used throughout the world.
- Minimum slope 3° (5%) – All types of building applications : commercial, public buildings, collective and individual housing.

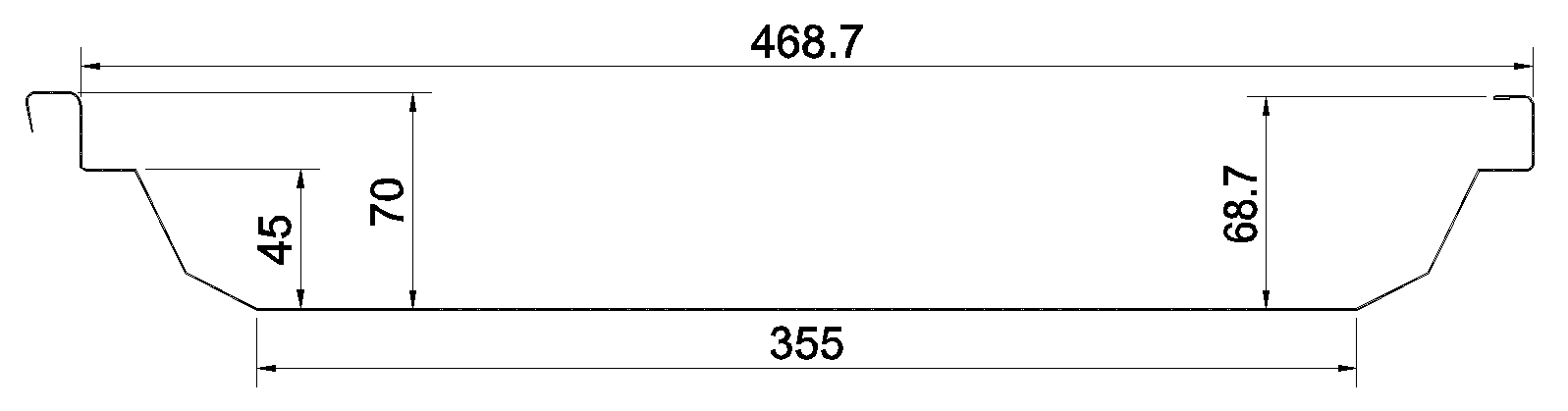

R70 PPGI Standing Seam Roofing Sheet
- Model number: OHC-R70 / YX70-470
- Double lock standing seam roofing
- FM approved (American standards)
- Cover width: 470 mm
- Concealed fasteners
- 11.9 m Lengths or longer rolling on site

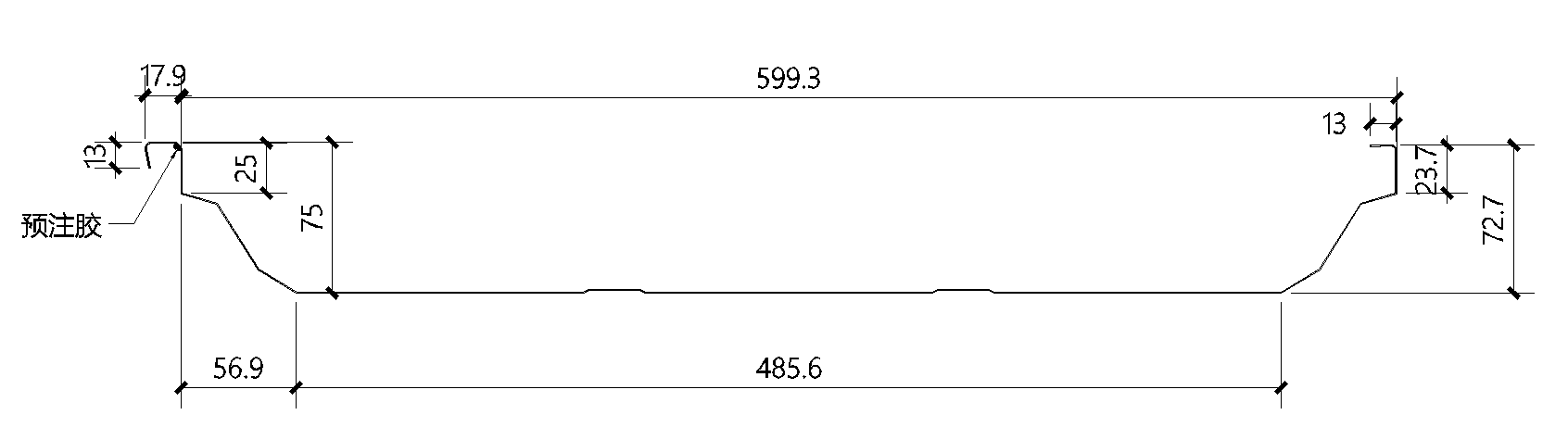

R75 PPGI Standing Seam Roofing Sheet
- Model number: OHC-R75 / YX70-600
- Double lock standing seam roofing
- FM approved (American standards)
- Cover width: 600 mm
- Concealed fasteners
- 11.9 m Lengths or longer rolling on site
