Al-Mg-Mn Standing Seam Metal Roof
Standing Seam System is a kind of point supporting roofing system, whose core composition is a special plate-shaped metal sheet based on the design of the standing seam locking way. This design is mainly aimed at the large-span self-supporting tight installation system. No perforation can be seen on the roof, because the method of support is hidden under the panel. The connection way of this roof sheet is to use its unique aluminum alloy supporting fastener, the sheet and the standing locking edge of the sheet seam to form a tight connection. The seam process of this sheet does not require manpower, and it is completely completed by the machine automatically.
Features and Benefits
- Mature structure power transmission protection system, suitable for roof or wall with slope ≥1.5°, has a long history and is widely used.
- On-site production, a single sheet with long-span (≤200m) can pass through without any length barge, no nail holes, simple construction, firm locking.
- Excellent drainage and anti-seepage function, unique thermal expansion resistance and safe wind pressure resistance.
- Advanced secondary molding process, easily solve the problem of coverage of hyperboloid or single surface.
- High class, low energy consumption, practical, beautiful and environmentally friendly.

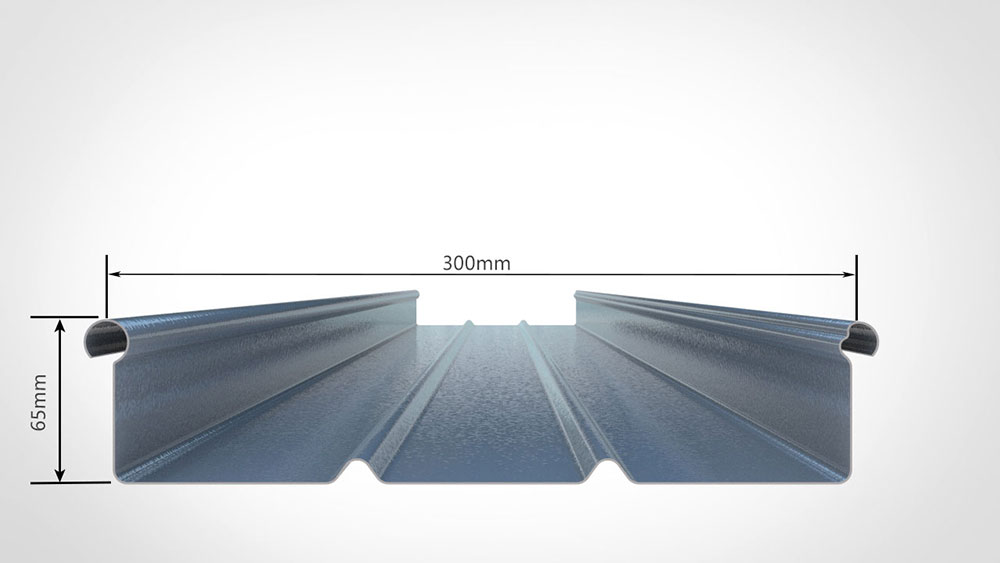

U-300 Al-Mg-Mn Standing Seam Metal Roof
- Model number: YX65-300
- Clip lock standing seam roofing
- Cover width: 300 mm
- Thickness: 0.9 mm
- 11.9 m Lengths or longer rolling on site

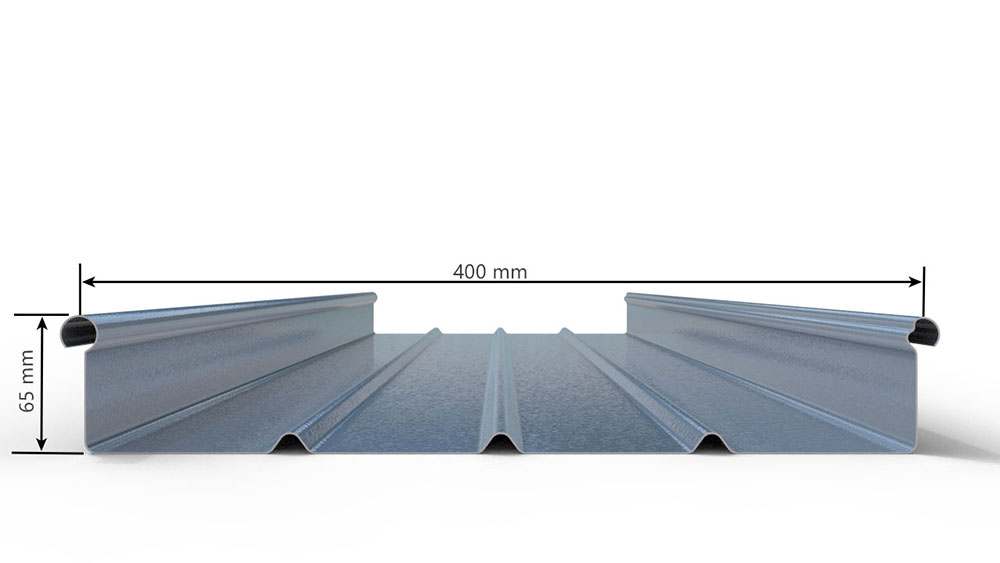

U-400 Al-Mg-Mn Standing Seam Metal Roof
- Model number: YX65-400
- Clip lock standing seam roofing
- Cover width: 400 mm
- Thickness: 0.9 mm
- 11.9 m Lengths or longer rolling on site

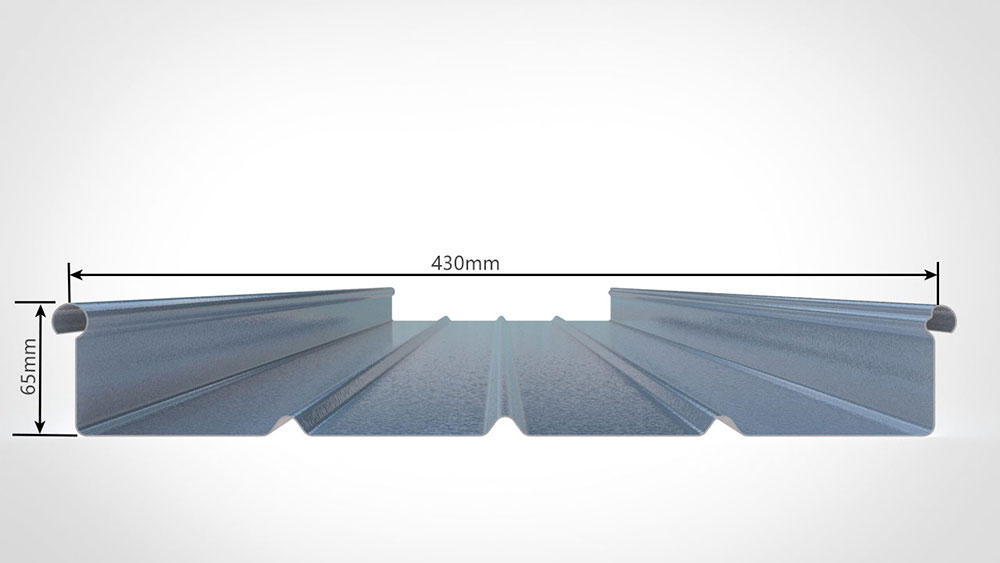

U-430 Al-Mg-Mn Standing Seam Metal Roof
- Model number: YX65-430
- Clip lock standing seam roofing
- Cover width: 430 mm
- Thickness: 0.9 mm
- 11.9 m Lengths or longer rolling on site
